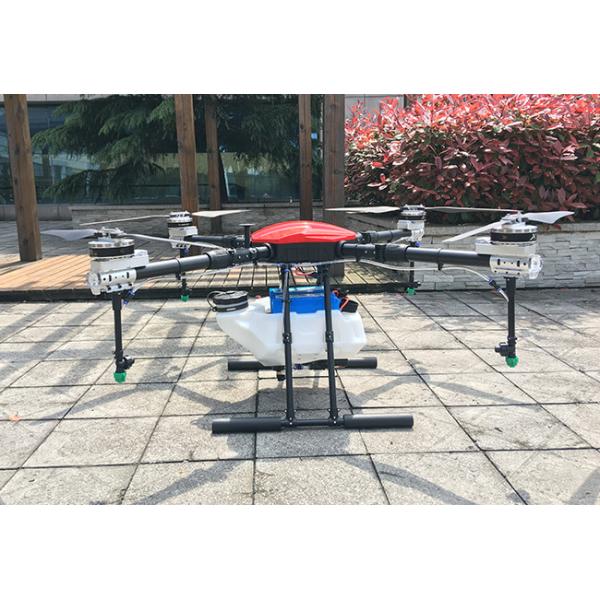

10L 4 Rotor Agriculture Drone Carbon Fiber And Aviation Aluminum Material

Brand Name : NLD

Model Number : NLA-410

Certification : ISO9001 CE FCC

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T, D/P, D/A

Supply Ability : 100sets/month.

Delivery Time : 20 days

Packaging Details : Aluminum Box

Product : 4-Rotor Agriculture Spraying Drone

Pesticide Tank : 10L

Folded Size : 635*666*490mm

Take-off Capacity : 28kg

Flying Time (with payload) : 10-15min

Wheelbase : 1393mm

Contact Now

10L 4-Rotor Agriculture Spraying Drone Carbon Fiber and Aviation Aluminum Material

Product Description
Model	NLA410	NLA416	NLA610	NLA616	NLA622	NLA630	NLA650
Rotor	4	4	6	6	6	6	8
Hovering accuracy	+/- 1.5m	+/- 1.5m	+/- 1.5m	+/- 1.5m	+/- 1.5m	+/- 1.5m	+/- 1.5m
horizontal
Hovering accuracy	+/- 0.5m	+/- 0.5m	+/- 0.5m	+/- 0.5m	+/- 0.5m	+/- 0.5m	+/- 0.5m
vertical
Wind resistance	4～5	4～5	4～5	4～5	4～5	4～5	4～5
Motor	4*100KV	4*110KV	6*180KV	6*100KV
Electronic Speed Control	80A	120A	80A	80A
Motor applicable temperature	-20～50	-20～50	-20～50	-20～50	-20～50	-20～50	-20～50
Foldable propeller	3090	3411	2388	3090
Pesticide Tank	10L	16L	10L	16L	22L	30L	50L
Take-off Capacity	28kg	38kg	30kg	42kg
Flying Time (with payload)	15~20min	15~20min	15~20min	15~20min	15~20min	15~20min	15~20min
Flying distance	5000m	5000m	5000m	5000m	5000m	5000m	5000m
Working distance	2000m	2000m	2000m	2000m	2000m	2000m	2000m
Flying Speed	0~10m/s	0~10m/s	0~10m/s	0~10m/s	0~10m/s	0~10m/s	0~10m/s
Spray Width	3~3.5m	3~3.5m	3.5~4m	3.5~4m	3.5~4m	3.5~4.5m	3.5~5m
Spray Flow	1.2~2L/min	1.2~2L/min	1.2~2L/min	1.2~2L/min	1.5~2.5 L/min	1.5~2.5 L/min	1.5~3 L/min
Spray Efficiency	1000~2100 sqm/min	1000~2100 sqm/min	1500~2400 sqm/min	1500~2400 sqm/min
Expand Size	17801780 567mm	18481848 628mm	19921992 562mm	24282428 600mm
Wheelbase	1362mm	1416mm	1407mm	1648mm
Folded Size	700658 567mm	648671 628mm	945848 562mm	1102979 600mm
Battery / Quantity	6S/16000 mAh / 2pcs	6S/22000 mAh / 2pcs	6S/16000 mAh / 2pcs	6S 22000 mAh / 2pcs	6S 22000mAh / 2pcs	6S 30000mAh / 2pcs	12S 27000mAh / 2pcs
FPV Camera	Optional	Optional	Optional	Optional	Optional	Optional	Optional
Obstacle avoidance radar	Optional	Optional	Optional	Optional	Optional	Optional	Optional
Terrain following radar	Optional	Optional	Optional	Optional	Optional	Optional	Optional
RTK centimeter positioning	Optional	Optional	Optional	Optional	Optional	Optional	Optional
