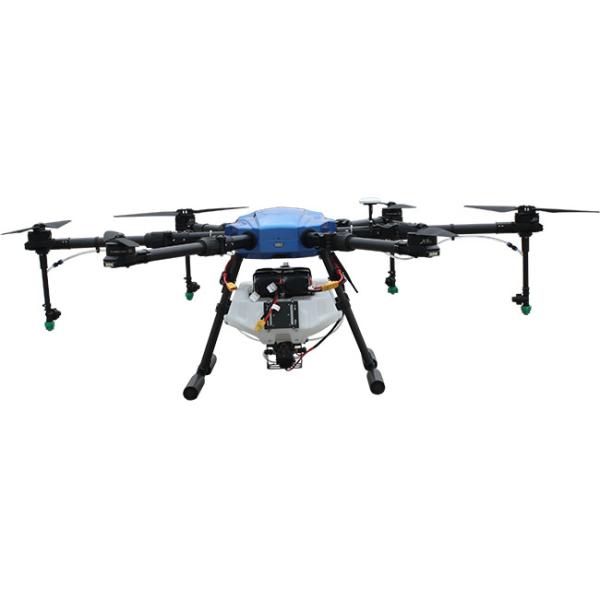

FCC ISO Agriculture Plant Protection Spraying Drone With 22000mAh Battery

  • 1
  • 2

Brand Name : NLD

Model Number : NLA-610

Certification : ISO9001 CE FCC

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T, D/P, D/A

Supply Ability : 100sets/month.

Delivery Time : 15~25 days

Packaging Details : Aluminum Box

Type : FCC ISO Agriculture Plant Protection Spraying Drone With 22000mAh Battery

Spray Efficiency : 1500~2400sqm/min

Flight controller : 2CPU + 3 IMU

Spray width : 3~5m

Spray efficiency : 6~8 Ha/hour

Work mode : Manual / Workstation

Contact Now

FCC ISO Agriculture Plant Protection Spraying Drone With 22000mAh Battery】

Model NLA610 NLA616 NLA622 NLA630 NLA650
Rotor 6 6 6 6 8

Hovering accuracy

horizontal

 +/- 1.5m +/- 1.5m +/- 1.5m +/- 1.5m +/- 1.5m

Hovering accuracy

vertical

 +/- 0.5m +/- 0.5m +/- 0.5m +/- 0.5m +/- 0.5m
Wind resistance 4～5 4～5 4～5 4～5 4～5
Motor 6*180KV 6*100KV
Electronic Speed Control 80A 80A
Motor applicable temperature -20～50 -20～50 -20～50 -20～50 -20～50
Foldable propeller 2388 3090
Pesticide Tank 10L 16L 22L 30L 50L
Take-off Capacity 30kg 42kg
Flying Time (with payload) 15~20min 15~20min 15~20min 15~20min 15~20min
Flying distance 5000m 5000m 5000m 5000m 5000m
Working distance 2000m 2000m 2000m 2000m 2000m
Flying Speed 0~10m/s 0~10m/s 0~10m/s 0~10m/s 0~10m/s
Spray Width 3.5~4m 3.5~4m 3.5~4m 3.5~4.5m 3.5~5m
Spray Flow 1.2~2L/min 1.2~2L/min 1.5~2.5L/min 1.5~2.5L/min 1.5~3L/min
Spray Efficiency 1500~2400sqm/min 1500~2400sqm/min
Expand Size 1992*1992*562mm 2428*2428*600mm
Wheelbase 1407mm 1648mm
Folded Size 945*848*562mm 1102*979*600mm
Battery / Quantity 6S/16000mAh / 2pcs 6S 22000mAh / 2pcs 6S 22000mAh / 2pcs 6S 30000mAh / 2pcs 12S 27000mAh / 2pcs
FPV Camera Optional Optional Optional Optional Optional
Obstacle avoidance radar Optional Optional Optional Optional Optional
Terrain following radar Optional Optional Optional Optional Optional
RTK centimeter positioning Optional Optional Optional Optional Optional

FCC ISO Agriculture Plant Protection Spraying Drone With 22000mAh Battery

Integrated power system
  • The PMSM algorithm based on FOC is optimized to create a perfect dynamic system
  • Intelligent multiple redundancy protection, running data real-time output
  • High lift, high efficiency propeller
  • Sturdy, reliable and impact resistant
  • Highlight the LED display
  • Super protection, easy to deal with the harsh environment of plant protection
  • Modular design, easy maintenance
  • support system upgrade

APP Ground Workstation
  • Android mobile phone ground workstation, Control and adjust drone’s flying parameter, provide google map, check FPV video.
  • Support hand held GPS dot device,RTK dot device,Drone GPS dot and Map for choosing, set up Automatic, semi-automatic AB working mode, flying height, spray mode, flight line spacing, flying speed, Terrain following, automatic obstacle avoidance, course adjustment, fail-sail back.
  • Query job record, flight time, spray width, dose etc.
